Outdoor Kitchen Cabinet Guide: Base, Wall, Corner & Drawer Types

Base units are the workhorse of any built-in cooking zone. A standard outdoor kitchen cabinet in the base category measures 34.5 inches tall before the countertop, with widths stepped in 3-inch increments from 12, 15, 18, 21, 24, 30, 33, 36, up to 42 inches. Depth is almost always 24 inches, matching indoor cabinetry so granite fabricators can use the same templates. The 30-inch and 36-inch widths are the most common because they accept appliance cutouts for grills like the Blaze Premium LTE 32-inch (28-7/8 inch cutout) or the Bull Angus 30-inch (29-1/2 inch cutout).

Load ratings matter more than most buyers realize. A 36-inch base cabinet from Werever (powder-coated marine-grade aluminum) is rated for 600 pounds on top, which comfortably supports a 3 cm granite slab plus a built-in side burner. NewAge Bold Series base cabinets in 24-gauge cold-rolled stainless are rated to 500 pounds. By contrast, a Sunjoy or Backyard Discovery hardwood base cabinet from a big-box retailer is typically rated to only 250 pounds and warps within two summers in humid climates. Internal shelving on quality base units is adjustable in 1-inch increments, with most shelves themselves rated for 75 pounds — enough for a stack of cast iron Lodge cookware.

Wall-mounted units are the most overlooked outdoor kitchen cabinet category, partly because most prefab island kits omit them entirely. A wall the cabinet typically measures 30 inches wide, 12 inches deep, and 30 inches tall, mounting 18 inches above the countertop — the same minimum clearance OSHA recommends for cooking surfaces. Brands like Danver, Brown Jordan, and NatureKast manufacture wall units specifically for covered patios where the structure can carry the lateral load. Each cabinet weighs 35 to 60 pounds empty and must be anchored into a stud or steel frame with 3/8-inch lag bolts.

Use wall cabinets for spices that should not bake at 110-degree countertop temperatures, glassware that scratches on stainless prep surfaces, and small appliances like a Breville Smart Oven that you want close at hand but off the counter. They also house exhaust hood ducting beautifully when designed in tandem — a 36-inch Vent-A-Hood OUL130 fits between two 18-inch wall cabinets to create a balanced under-roof composition. Avoid mounting wall cabinets in fully exposed open-air kitchens; without overhead protection, the doors collect rainwater along their top edges and the hinges fail in 18 to 24 months even on stainless models.

Corners are where most the cabinet layouts go wrong. The 90-degree turn in an L-shape or U-shape island creates a pocket of dead space that, without a dedicated corner cabinet, swallows roughly 9 cubic feet of storage. Two designs solve this. A diagonal corner cabinet has a 36-inch by 36-inch footprint with the door angled at 45 degrees across the front, exposing a deep triangular cavity. Inside, manufacturers like Werever fit a stainless lazy Susan with two 28-inch round shelves rated to 50 pounds each.

The blind corner variant looks like a standard 36-inch base unit from the front but extends 24 inches into the perpendicular run. Pull-out hardware — typically a Hafele or Rev-A-Shelf swing-out mechanism rated for outdoor moisture — exposes the back contents. Blind corners cost roughly 30 percent less than diagonal corners but lose about 20 percent of usable interior volume. For most homeowners building an L-shape under 12 feet per leg, the blind corner is the better value. For U-shapes or any installation under a pergola, the diagonal corner cabinet earns its higher price by giving you a true working storage zone instead of a fishing expedition.

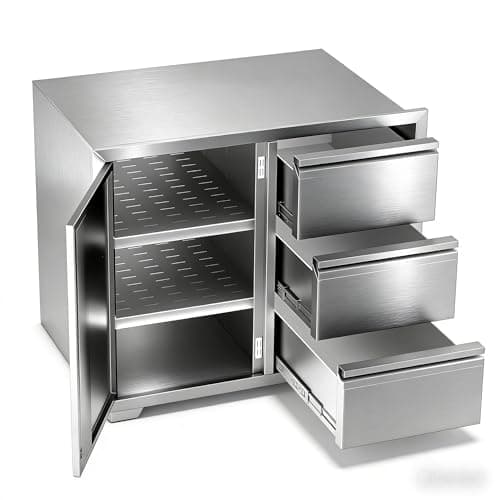

Drawer-front configurations have overtaken door-fronts as the preferred the cabinet style for new builds, and the reason is ergonomic. Pulling a 24-inch drawer out at hip level beats crouching and reaching into a dark base cabinet every single time. A single-drawer unit is rare; the standard configurations are two-drawer (one shallow over one deep), three-drawer (three equal 9-inch heights), and the bread-and-butter combo of one 6-inch utility drawer over two 12-inch deep drawers. Widths follow the same 3-inch increments as base cabinets, with 24, 30, and 36 inches being most common.

The hardware is what separates good drawer cabinets from bad ones. Look for full-extension undermount slides rated to 100 pounds minimum, with a soft-close mechanism that has been salt-spray tested to ASTM B117 standards for 1,000 hours. Blum Tandem Plus Blumotion slides are the gold standard and ship on Lynx, Hestan, and Kalamazoo cabinets. Cheaper builds use side-mount ball-bearing slides that seize within two seasons of pollen and dust intrusion. A high-quality 30-inch three-drawer the cabinet from Danver runs $1,950 to $2,400; the equivalent NewAge Bold version sits at $899 to $1,099 and still uses Blum hardware, which is why the brand has captured so much of the mid-market.

Four materials dominate today's the cabinet market, and each has a distinct climate fit. Type 304 stainless steel is the default for inland builds — it contains 18 percent chromium and 8 percent nickel, resists corrosion well, and costs roughly $180 per linear foot in cabinet form. Type 316 adds 2 percent molybdenum, which dramatically improves resistance to chloride pitting; this is the alloy you want within 10 miles of saltwater or near an in-ground pool with chlorinated water. The 316 upgrade adds about 25 to 35 percent to the cabinet price.

HDPE (high-density polyethylene) cabinets from brands like NatureKast and Trex Outdoor Kitchens are dimensionally stable across a -40 to 180-degree Fahrenheit range, will not rust under any circumstances, and can be cleaned with a pressure washer. They cost about 60 percent of equivalent stainless. Marine polymer (often branded as Starboard or King StarBoard) is the same material used for boat hatches and wins on UV stability — it shows essentially no color shift after 10 years of direct sun. The trade-off is that polymer cabinets cannot accept a typical 3 cm granite countertop without an internal aluminum subframe, because the polymer creeps under sustained load. Always confirm with the manufacturer that the cabinet ships with the subframe pre-installed.

Marine-grade 316 stainless cabinets routinely last 25 to 30 years with minimal maintenance. Type 304 stainless lasts 15 to 20 years inland. HDPE and marine polymer cabinets carry 20 to 25 year warranties from brands like NatureKast and Trex. Faux-wood thermoplastic on a stainless frame typically lasts 15 to 20 years. Wood-frame outdoor cabinets, even from name brands, rarely exceed 5 to 7 years.

Combustible cabinets (HDPE, polymer, faux-wood thermoplastic, or any framed wood) absolutely require an insulated jacket around the grill cutout. The jacket lines the cavity with a 3/4-inch ceramic fiber blanket and a stainless skin, dropping the exterior cabinet temperature from 350 degrees to under 130 degrees. Stainless steel cabinets do not legally require a jacket but benefit from one for nearby drawers and wiring.

Every appliance you plan to drop into your build has a published cutout dimension, and the matching outdoor kitchen cabinet must accept that cutout with at least 1/2 inch of clearance per side for thermal expansion. The most common 36-inch grill — the Blaze Professional LUX 3-burner — calls for a 33-7/8 inch wide by 22-1/2 inch deep by 9-1/4 inch tall cutout. A side burner like the Bull Single Side Burner needs only a 13-inch wide by 19-1/4 inch deep cutout. A 24-inch outdoor refrigerator (Blaze BLZ-SSRF130 or Summerset SSRFR-24S) requires a 24-1/2 inch wide by 23-1/4 inch deep by 34-inch tall opening with rear ventilation.

Insulated jackets are mandatory for any grill cutout in a combustible cabinet (HDPE, polymer, or wood). Brands like Lynx, Twin Eagles, and Bull all sell purpose-built insulating jackets that line the cutout cavity with a 3/4-inch ceramic fiber blanket and a stainless skin, dropping the exterior cabinet temperature from 350 degrees to under 130 degrees. The jacket adds about $200 to $450 to the build. Stainless steel cabinets do not legally require an insulating jacket but benefit from one anyway because the reduced heat transfer extends the life of any nearby drawers, wiring, or polymer trim.

The visible face of an outdoor kitchen cabinet is split into the box, the door or drawer fronts, and the pulls. Boxes are usually hidden inside the island so a brushed or mill finish is fine. Door fronts are where buyers spend their money. Brushed stainless (#4 finish) hides fingerprints and water spots better than polished mirror finishes and is the industry default. Powder-coated finishes — available from Danver in over 50 colors including Tahitian Sand, Black Olive, and Whitewashed Oak — survive ASTM G154 UV testing for 4,000 hours without chalking. Faux-wood thermoplastic veneers from NatureKast convincingly mimic teak, cedar, and walnut at one-tenth the cost of real exotic wood, and they will not rot.

Hardware should be marine-grade 316 stainless or solid bronze. Avoid chrome-plated zinc, which pits within a single coastal summer. Bar pulls in 6-inch, 8-inch, and 12-inch lengths are the modern default; cup pulls and shaker-style hardware suit traditional builds. Hinges should be European-style six-way adjustable (Blum, Salice, or Hettich) so doors can be realigned annually as the structure settles. Budget $25 to $80 per pull and $45 to $90 per hinge for marine-grade hardware that will outlast the cabinet itself.

Setting an outdoor kitchen cabinet correctly is a five-step sequence that, when followed, prevents 90 percent of long-term failures. First, the concrete pad or pavers under the cabinet must be flat within 1/8 inch over 10 feet — check it with a 6-foot level before any cabinet leaves the box. Second, anchor each cabinet into the substrate with Tapcon 3/16-inch by 2-3/4-inch concrete screws, two at the front and two at the rear of each unit. Third, level adjacent cabinets to each other using the built-in screw feet (most stainless cabinets have 1-inch of vertical adjustment).

Fourth, seal every cabinet-to-cabinet seam with a high-modulus polyurethane sealant like Sika Sikaflex-1a or Loctite PL Marine — never use silicone, which will not bond reliably to stainless or polymer surfaces and traps moisture. Fifth, only after all cabinets are anchored, leveled, and sealed should the countertop template be made. Templating before sealing is the most common installer error; the cabinets shift slightly during sealant cure and a granite slab cut to the wrong template becomes an expensive paperweight. Plan a full day for installation of a 10-foot run with four cabinet units, and add a half day if you are integrating a corner cabinet.

Things that catch people out:

Do drawer cabinets cost more than door cabinets?

Yes, typically 30 to 50 percent more for the same width. A 30-inch door-front base cabinet from NewAge Bold runs about $649, while the three-drawer equivalent is $899 to $1,099. The price difference reflects the cost of the soft-close slides, which should always be Blum Tandem Plus or equivalent rated to 100 pounds with full extension.

What is a blind corner cabinet?

A blind corner cabinet looks like a standard 36-inch base unit from the front but extends 24 inches into the perpendicular run of an L-shape island. A swing-out pull-out mechanism exposes the back contents. Blind corners cost roughly 30 percent less than diagonal corner cabinets but lose about 20 percent of usable interior storage volume.

How do I keep outdoor cabinet doors from warping?

Choose dimensionally stable materials — HDPE polymer, marine polymer, or stainless steel will not warp at all. If you must use wood-look thermoplastic veneer, ensure the cabinet box is sealed on all six sides, including the back, to prevent moisture absorption. Avoid real wood doors in any outdoor application unless they are protected by a covered structure and finished with marine-grade spar urethane reapplied annually.

The clearance and sizing figures on this page are compiled from manufacturer documentation and the kitchen sizing standards published by the National Kitchen & Bath Association; your local building department has the final word.
