Outdoor Kitchen Pergola: Styles, Materials & Installation Guide for Every Budget

The first decision when planning an outdoor kitchen pergola is whether it will be attached to your home, freestanding in the yard, or a hybrid design that incorporates elements of both. Each type has distinct structural, aesthetic, and permitting implications.

An attached pergola (sometimes called a lean-to pergola) connects directly to your home's exterior wall using a ledger board, similar to how a deck is fastened. This design is ideal when your outdoor kitchen sits immediately adjacent to the house, such as on a covered patio or deck extension. Attached pergolas typically require only two support posts instead of four, reducing material costs by 20 to 30 percent. However, the attachment point must be secured into the home's framing — not just siding — and flashing must be installed to prevent water intrusion at the connection. Most municipalities require an engineering review for attached pergolas because they transfer wind and snow loads to the house structure.

A freestanding pergola stands independently on four or more posts with its own footings, making it the more versatile option for outdoor kitchens that are positioned away from the house. Freestanding pergolas can be placed anywhere in the yard and do not affect the home's structural envelope. They require four concrete footings dug to your local frost line depth — typically 36 to 48 inches in northern states — which adds $400 to $1,200 in foundation costs. Hybrid designs combine a freestanding structure with an extended canopy or roof panel that reaches back to the house, providing continuous coverage from the back door to the cooking area without a direct structural attachment.

Wood remains the most popular material for outdoor kitchen pergolas due to its natural beauty, workability, and warmth. However, not all wood species perform equally in an outdoor environment where grease splatter, heat, moisture, and UV exposure are constant threats.

Western red cedar is the most common pergola wood and offers an excellent balance of durability, appearance, and cost. Cedar contains natural oils that resist decay and insect damage without chemical treatment, and it weathers to an attractive silver-gray patina if left unstained. A 10-by-12-foot cedar pergola kit from brands like Outdoor Living Today or Yardistry costs $2,500 to $5,000 for materials, with installation adding $1,500 to $3,000. Cedar posts should be a minimum of 6x6 inches for adequate structural support, with 2x8 or 2x10 rafters on 16-inch centers.

Redwood offers superior rot resistance compared to cedar and is visually stunning, with deep reddish tones that complement rustic and Mediterranean outdoor kitchen designs. However, genuine construction-grade redwood costs 40 to 60 percent more than cedar and is primarily available on the West Coast. Pressure-treated southern yellow pine is the budget-friendly choice at roughly half the cost of cedar, but it requires staining or sealing every two to three years to prevent warping and checking. Modern pressure treatments like MCA (micronized copper azole) are safer than older CCA formulations.

For premium builds, tropical hardwoods like ipe, cumaru, and tigerwood deliver exceptional density and decay resistance — ipe has a 25+ year lifespan outdoors without any treatment. These hardwoods cost $8 to $15 per linear foot compared to $3 to $6 for cedar, but they are essentially maintenance-free once installed.

Metal pergolas have surged in popularity for outdoor kitchen installations because they offer superior strength-to-weight ratios, zero maintenance requirements, and design options that wood cannot match — including motorized louvered roof systems that adjust shade on demand.

Extruded aluminum is the dominant metal choice for residential pergolas. It does not rust, weighs roughly one-third as much as steel, and can be powder-coated in any color to match your outdoor kitchen aesthetics. Leading aluminum pergola manufacturers include Struxure (formerly StruXure), Equinox Roof, Azenco, and Mirador. A basic aluminum pergola in a 10-by-12-foot configuration starts around $5,000 for a flat-top design, while motorized louvered models from Struxure or Equinox range from $12,000 to $30,000 installed. The louvered systems feature adjustable aluminum slats that rotate from fully open (maximum airflow) to fully closed (rain-tight) at the touch of a button or smartphone app.

Galvanized steel pergolas offer maximum structural strength and are preferred in areas with heavy snow loads or high wind exposure. Steel posts can span wider distances without intermediate supports, making them ideal for large outdoor kitchen footprints exceeding 14 feet in any direction. Steel pergolas from brands like Pergola Depot or Modern Outdoor typically cost $4,000 to $10,000 for a standard size and are finished with industrial powder coating for rust prevention. The downside of steel is its weight — a 12-by-14-foot steel pergola can weigh over 800 pounds, requiring heavier footings and professional installation with equipment.

For homeowners seeking the look of a painted wood pergola without the ongoing maintenance, vinyl (PVC) pergolas deliver a clean, consistent appearance that never needs staining, sealing, or repainting. Vinyl pergolas are constructed from hollow PVC profiles reinforced with aluminum inserts for structural rigidity. Leading manufacturers include Walpole Outdoors, New England Arbors, and Pergola Kits USA, with prices ranging from $2,000 to $7,000 for a 10-by-12-foot structure.

The primary advantage of vinyl is its imperviousness to moisture. Unlike wood, vinyl does not absorb water, swell, crack, or rot. It is also impervious to termites and carpenter ants. Cleaning requires nothing more than a garden hose and occasional mild soap wash. However, vinyl has notable limitations for outdoor kitchen applications. It has lower structural strength than wood or metal — most vinyl pergola manufacturers limit span widths to 12 to 14 feet between posts without additional supports. Vinyl can also warp or become brittle in extreme temperature swings, particularly in regions where summer highs exceed 100 degrees Fahrenheit and winter lows drop below minus 10.

Fiberglass pergolas address many of vinyl's shortcomings. Fiberglass is significantly stronger pound-for-pound than both wood and vinyl, does not expand or contract with temperature changes, and resists UV degradation for decades. Brands like Chadsworth Columns and HB&G (now part of Boral) offer fiberglass pergola systems starting around $5,000. The material can be painted any color and mimics the texture of wood with far less maintenance. Fiberglass is the emerging choice for coastal environments where salt air corrodes both metal and degrades wood rapidly.

A traditional open-rafter pergola provides partial shade but offers no rain protection — which limits its utility over an outdoor kitchen where you want to cook regardless of weather. Adding a roof covering transforms your pergola from a decorative element into a genuine shelter. Several options exist across the price spectrum.

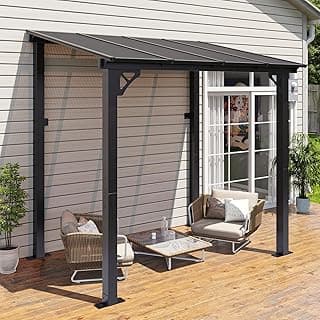

Polycarbonate roof panels are the most popular retrofit option. Available in clear, tinted, or opal (translucent white) varieties, polycarbonate panels let light through while blocking 99 percent of UV radiation and all rain. Standard corrugated panels from brands like Suntuf or Palram cost $2 to $4 per square foot and can be installed on existing pergola rafters with self-tapping screws and foam closure strips. A 10-by-12-foot polycarbonate roof costs $250 to $600 in materials and takes a competent DIYer one day to install.

Retractable fabric canopies offer a flexible solution — pull them closed for shade and rain protection, retract them for full sun when desired. Manual retractable systems run $300 to $800, while motorized versions cost $1,000 to $3,000. Sunbrella and Recacril fabrics are the industry standards for retractable pergola canopies, with fade warranties of 10 and 8 years respectively.

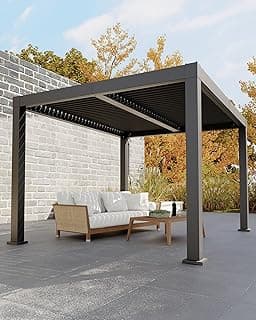

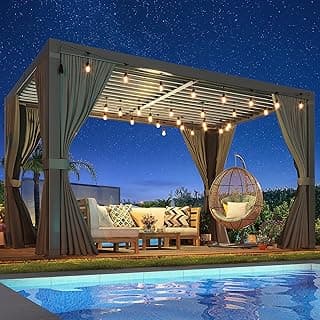

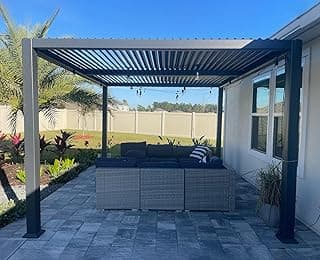

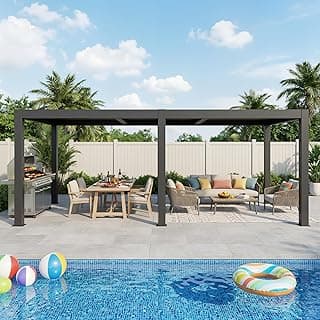

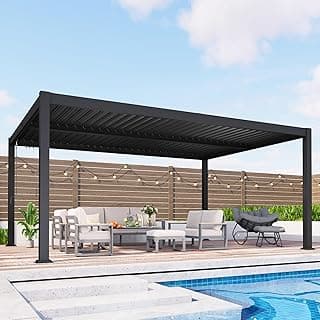

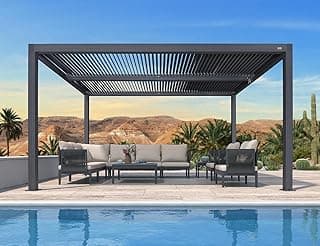

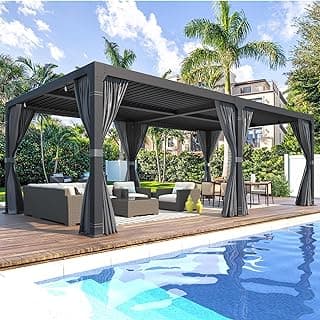

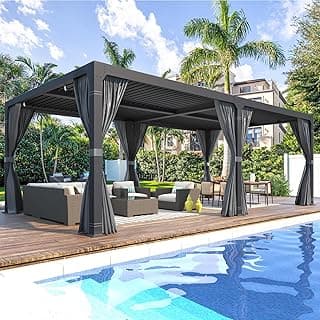

Motorized louvered panels, as mentioned in the aluminum section, represent the premium solution. When closed, they form a water-tight roof with integrated gutters that channel rain to downspouts. When open, the louvers allow full sunlight and airflow. This system is ideal for outdoor kitchens because it vents smoke and heat when the grill is running (louvers open) and provides rain shelter when you need it (louvers closed). Brands like Struxure offer rain sensors that automatically close the louvers when precipitation is detected.

A pergola that is too small leaves half your outdoor kitchen baking in direct sun, while one that is oversized wastes money and may overwhelm the visual proportions of your backyard. Proper shade calculations ensure your outdoor kitchen pergola covers the entire cooking and serving area during peak use hours.

Start by mapping your outdoor kitchen footprint. Measure the total width and depth of your island, countertops, and any adjacent seating or dining areas you want shaded. A typical outdoor kitchen island measures 8 to 12 feet long and 3 to 4 feet deep. Add the dining area — usually a 4-to-6-person table requiring a 5-by-8-foot zone — and you may need a total shaded area of 12 by 14 feet or larger.

Next, account for sun angle offset. A pergola directly overhead provides full shade only when the sun is at its zenith around solar noon. During morning and late afternoon — the most common outdoor cooking times — the sun is lower on the horizon, and shadows cast at an angle. In the continental United States, the summer sun at 4 PM sits roughly 30 to 45 degrees above the western horizon, meaning your pergola needs to extend 3 to 6 feet beyond your kitchen footprint on the west and south sides to maintain coverage during afternoon cooking sessions.

For open-rafter pergolas without roof panels, rafter spacing determines how much shade the structure actually provides. Rafters spaced 6 inches apart with 2-inch-wide boards deliver approximately 60 percent shade coverage. Spacing them 4 inches apart increases coverage to 75 percent. Adding 1-inch lattice strips perpendicular to the rafters on top creates a cross-hatch pattern that can approach 85 percent shade. These calculations change throughout the day as the sun angle shifts, so consider your primary use window when making spacing decisions.

Outdoor kitchen pergola construction is regulated by local building codes in most jurisdictions, and failing to obtain the required permits can result in fines, forced removal, or complications when selling your home. Here is what you need to know before breaking ground.

Permit requirements vary by municipality but generally follow this pattern: pergolas over a certain size (commonly 120 to 200 square feet), attached to the home, or located within a setback zone almost always require a building permit. Permits for pergola construction typically cost $150 to $800 and require a site plan showing the structure's location relative to property lines, the house, and utility easements. Most codes require a minimum of 5 to 10 feet between the pergola and any property line, though this varies widely.

Structural engineering requirements apply in regions with significant wind or snow loads. The International Residential Code (IRC) and local amendments specify minimum post sizes, footing depths, connection hardware, and lateral bracing. In hurricane zones along the Gulf and Atlantic coasts, pergolas must meet wind speed ratings of 130 to 180 mph, requiring engineered connections like Simpson Strong-Tie hurricane ties and concrete footings with embedded anchor bolts. In northern snow zones, pergola rafters must support live loads of 20 to 60 pounds per square foot depending on your county's ground snow load designation.

Homeowners association (HOA) restrictions add another layer of regulation. Many HOAs require architectural review board approval before any exterior construction, with specific rules about material types, colors, heights, and placement. Submit your plans early — HOA review can take four to eight weeks — and keep all approval documentation for your records. Getting the permitting and HOA approval process started first prevents costly project delays and ensures your outdoor kitchen pergola is fully compliant from day one.

Understanding the full cost picture for an outdoor kitchen pergola helps you budget accurately and decide whether to tackle the project yourself or hire a contractor. Here is a detailed breakdown by component and material type:

Footings and foundation: Four concrete footings dug to frost line depth (36 to 48 inches), each 12 to 16 inches in diameter, cost $400 to $1,200 including excavation, concrete, and post anchors. In areas with rocky soil or high water tables, costs can double.

Materials for a 10-by-12-foot pergola:

• Pressure-treated pine: $800 to $1,800
• Western red cedar: $1,500 to $3,500
• Aluminum (non-motorized): $3,000 to $6,000
• Aluminum with motorized louvers: $10,000 to $25,000
• Vinyl with aluminum inserts: $1,800 to $4,500

Professional installation labor for a standard pergola runs $1,500 to $4,000 for a two-to-three-day project. Electricians for wiring fans, lights, or motorized systems add $500 to $1,500. Total installed costs for a 10-by-12-foot pergola range from $3,000 to $8,000 for wood or vinyl and $8,000 to $30,000 for aluminum louvered systems.

DIY feasibility depends on your skill level and the pergola type. Wood and vinyl kit pergolas from brands like Yardistry and New England Arbors are specifically designed for homeowner installation and include pre-cut components, hardware, and detailed instructions. A competent DIYer with a helper can assemble a kit pergola in one to two weekends. However, digging footings, setting posts plumb, and ensuring the structure is square and level are critical steps where mistakes are costly. Metal pergolas and motorized systems almost always require professional installation due to the precision engineering, electrical connections, and weight of components. If your pergola attaches to the house, hiring a licensed contractor is strongly recommended to ensure proper flashing and structural connections.
